Parallel Type Air Grippers
Compact Type Parallel Style Air Gripper JMHZ2

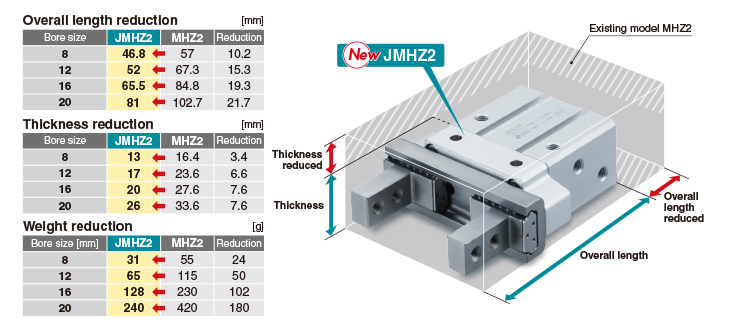

 | ･ Although downsized, gripping point is maintained. (ø20 → ø16) Overall length: Max. 21.7 mm shorter (102.7 mm → 81 mm) Thickness: Max. 7.6 mm shorter (33.6 mm → 26 mm) Weight: Max. 180 g lighter (420 g → 240 g) ･ High rigidity and precision are achieved by integrating the guide and finger in one piece. ･ With high-precision linear guide Repeatability: ±0.01 mm ･ Linear guide of the higher rigidity and precision is used. Higher rigidity |
| Type | Series | Cylinder bore size (mm) |
|---|---|---|
| Compact | JMHZ2 | 8，12，16，20 |

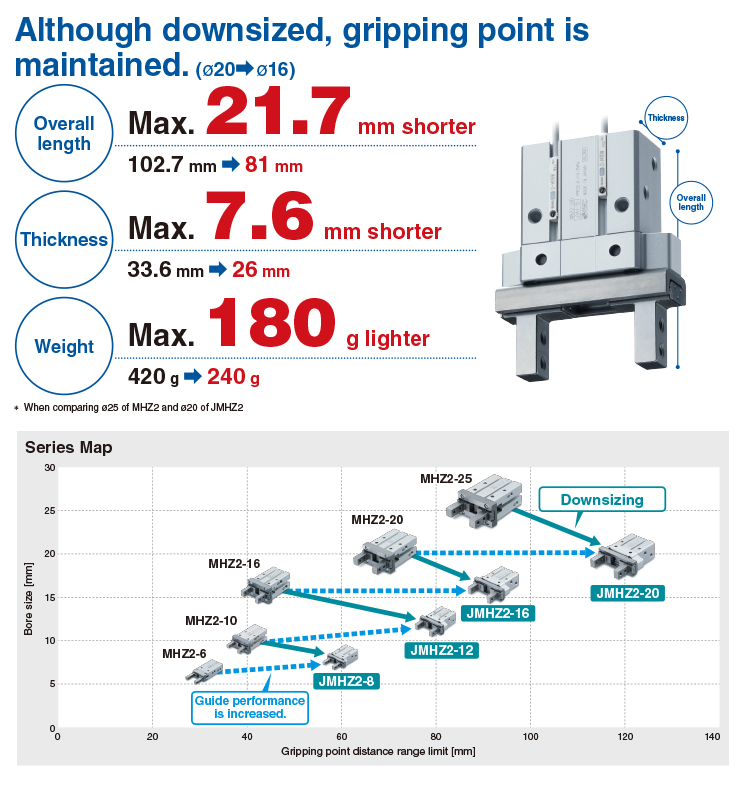

■Although downsized, gripping point is maintained. (ø20 → ø16)

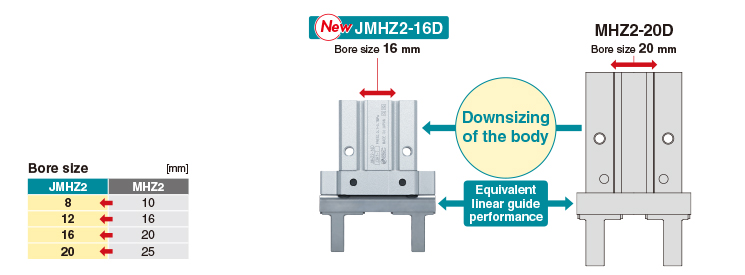

Downsizing
The same linear guide achieves one bore size smaller cylinder
Compact and lightweight

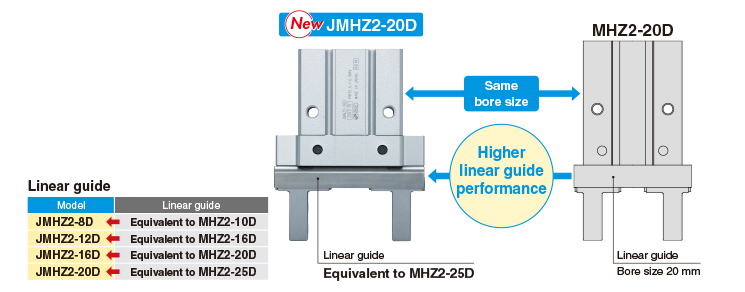

Guide performance is increased. Higher rigidity
・Linear guide equivalent to that of the larger bore size of the cylinder is used.
・Higher opening/closing stroke

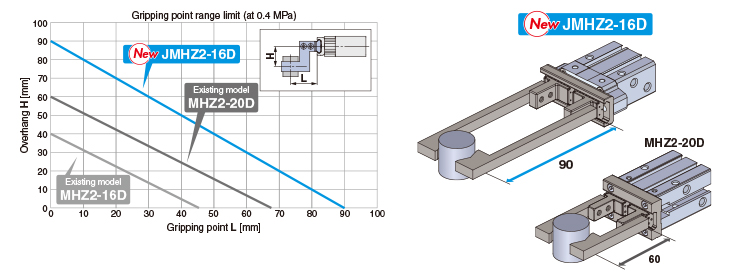

Longer gripping point
Longer gripping point is possible in cylinder one bore smaller.
High precision
High degree of mounting flexibility
Can be mounted 3 ways from 2 directions
Finger options
Compact auto switches are mountable.

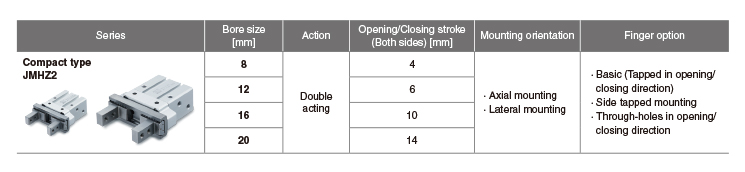

Series Variations
Compact Type Parallel Style Air Gripper JMHZ2
